导电垫圈

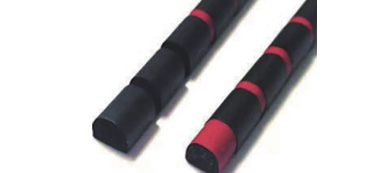

WF Series

Conductive Fabric Wrapped Foams

Max. Compression Ratio: ≥50%

Surface Resistance (ohms): ≤0.07

Compression Set (70℃,22hours): ≤5%

Shielding Efficiency: ≥60

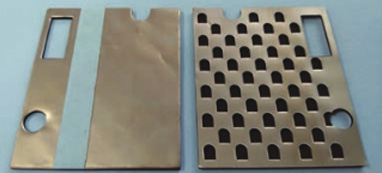

CFS Series

Conductive Foam

Total Thickness (mm): 0.2-4.0

XY- Resistance (ohms): <1

Z- Resistance (ohms): <0.5

WP Series

Conductive Fabric Wrapped Foams

Max. Compression Ratio: ≥50%

Surface Resistance (ohms): ≤0.07

Compression Set (70℃,22hours): ≤5%

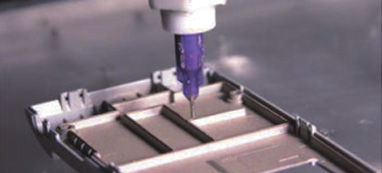

CSRF045 Series

Form-In-Place EMI Gasket

Resin : Silicone

Hardness (Shore A): 46 (Customizable)

Volume Resistivity (Ω·cm): 0.01

Shielding Efficiency: >80

Air Loop

Conductive Air Loop

Shape: Type D, type P, customizd as required

rface Resistance (ohms): ≤0.05

Suggested Compression Ratio: 25-40%

Shielding Efficiency: >60

SR Series

SMT Rubber Gasket

Uasge Temperature: -40℃~+280℃

Elastomer Hardness (Shore A): 50

Recoverage Ratio after 30%*5,000 times: Typical 90%

Volume Resistance: Typical 0.1Ω

PO/POS Series

Conductive Foam

Total Thickness (mm): 0.3-4/0.2-3.0

XY- Resistance (ohms): <0.5

Z- Resistance (ohms): <0.2

Shielding Efficiency: ≥60/≥85

CPC Series

Thermally and Electrically Conductive Cushion Gasket

Total Thickness (mm): 1.0-3.0

Thermal Conductivity (in-plane) (W/m·K) : 400

Compression Set 70℃: ≤5%

Shielding Efficiency: ≥60
